Crystal Spring Nursery Wet/Dry Feeder with Water-Space™ (Two Sided) (Model #N2)
#N2
Available
Crystal Spring Nursery Wet/Dry Feeder (Two Sided) (Model #N1)
Available for Pre-order
- Description
- Have a Question About This Item
Crystal Spring Nursery Wet/Dry Feeder (Two Sided) (Model #N1)
This two-sided wet/dry nursery feeder has a riveted chassis. Piglets can eat dry feed from the shelf or combine feed and water in the trough.
Key Features
- Our two-sided wet/dry nursery feeder has an industry-standard riveted chassis.
- Pigs can choose to eat dry feed from the shelf or combine feed and water in the trough.
- Our wet/dry nursery feeders are proven to increase gain in every growing phase while decreasing feed and water wastage.
- Adaptive-Flow™ nipple technology provides consistent water flow from the nipple, even with variable barn water pressures
- EZ-Adjust™ technology provides precise feed flow control in 1/16” (1,5 mm) increments
- Lapped and folded parts eliminate sharp edges and strengthen wear points
- One-piece waterline for ease of installation and to avoid potential leak areas/points
Specifications
- Up to 60 lb (27 kg) pig weight
- Feeds one pig per linear inch (2.54 cm/pig)
- Chassis made with 20 gauge (0,8-0,9 mm) 304 series stainless steel
- Riveted construction
| Feeder Model | Feed Spaces Per Side | Feeder dimensions (LxWxH) in | Feeder dimensions (LxWxH) mm | Feeder dimensions (weight) lbs / kgs | Height on X version in/mm | Feed Capacity* lbs / kgs | Recommended pigs per feeder** | # of feed tube holders |
|---|---|---|---|---|---|---|---|---|
| 10" | 1 | 10x17x25 | 254x432x635 | 28.01 / 12.7 | N/A | 24.2 lbs / 11 kgs | 18-22 | 1 |
| 15" | 2 | 15x17x25 | 381x432x635 | 34.65 / 15.7 | N/A | 48.5 lbs / 22 kgs | 26-34 | 1 |
| 18" | 3 | 18x17x25 | 4571x432x635 | 37.73 / 17.1 | N/A | 66.1 lbs / 30 kgs | 32-40 | 1 |
| 24" | 4 | 24x17x25 | 610x432x635 | 44.12 / 20 | N/A | 89 lbs / 40.4 kgs | 44-52 | 1 |
| 30" | 5 | 30x17x25 | 762x432x635 | 50.51 / 22.9 | N/A | 120 lbs / 54.4 kgs | 54-66 | 1 |
| 36" | 6 | 36x17x25 | 914x432x635 | 57.23 / 26 | N/A | 144 lbs / 65.3 kgs | 64-80 | 1 |
| 42" | 7 | 40.50x17x25 | 1029x432x635 | 63.79 / 28.9 | N/A | 161 lbs / 73 kgs | 76-92 | 2 |
| 48" | 8 | 46.50x17x25 | 1181x432x635 | 70.12 / 31.8 | N/A | 185 lbs / 83.9 kgs | 86-106 | 2 |
| 54" | 9 | 52.50x17x25 | 1334x432x635 | 76.84 / 34.9 | N/A | 209 lbs / 94.8 kgs | 96-120 | 2 |
| 60" | 10 | 58.50x17x25 | 1486x432x635 | 83.23 / 37.8 | N/A | 233 lbs / 105.7 kgs | 108-132 | 2 |
- * Feed capacity may vary according to feed formulation and type** Spaces based on double sided feeders
Installation & Compatibility
- Available with up to 10 spaces and up to 60” long (1486 mm)
- Available as a single-sided feeder (Model #N4)

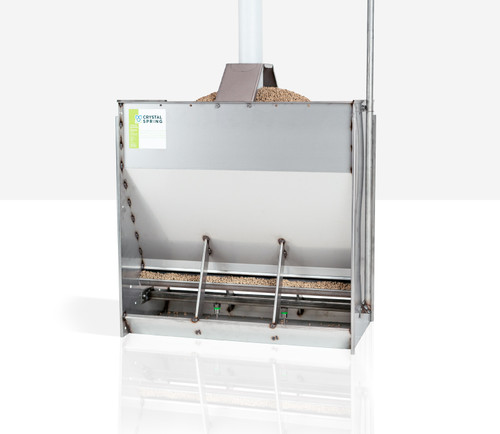

- Also available with heavy-duty construction to accommodate heavier pig weights (Model #G6)
- Custom configurations are available to meet specific production, layout and installation needs. To learn more, please contact our team.
- Multiple holes and knockouts allow for many mounting situations—various mounting accessories available
